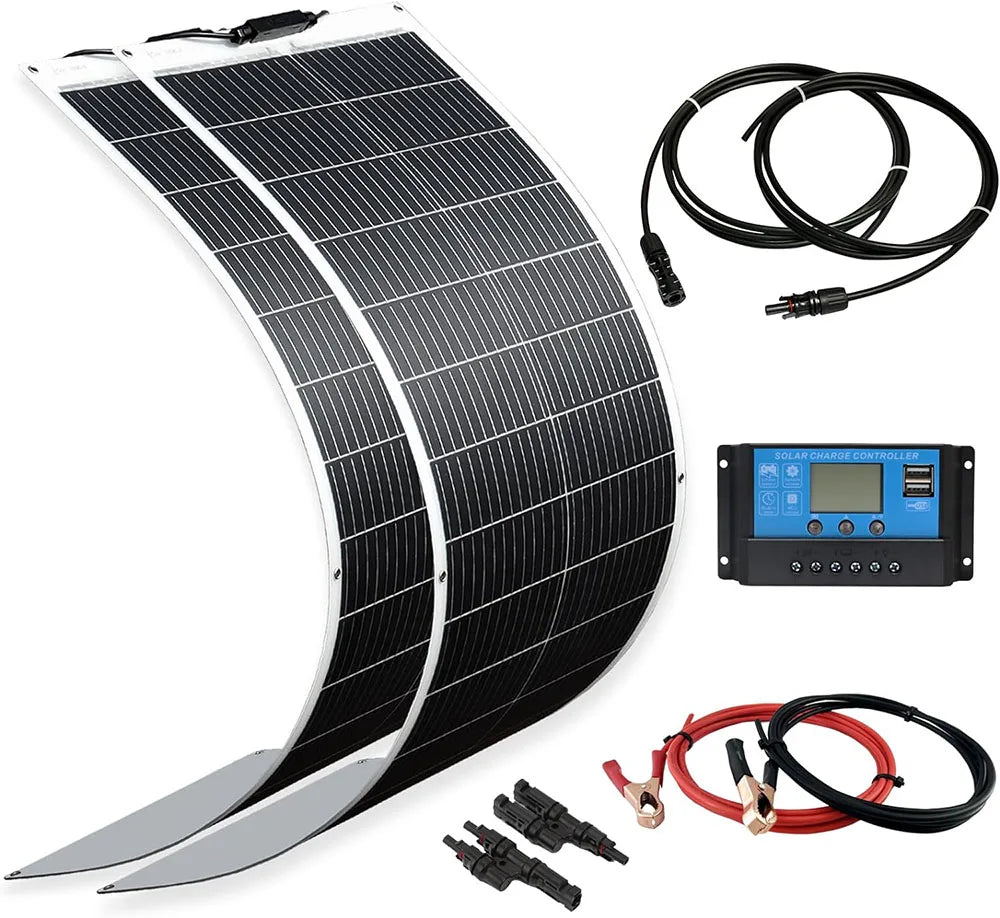

WUZECK Solar Panel Kit Flexible 200W Monocrystalline 2X100W Flexible Solar Module+20A 12V/24V Solar Charge Controller+Solar Cable Off-Grid System for 12V Batteries Solar System Motorhome Houses Balcony Camping
200W set / GERMANY
$187.06
Sale price
$187.06
Regular price
$0.00
Skip to product information
WUZECK Solar Panel Kit Flexible 200W Monocrystalline 2X100W Flexible Solar Module+20A 12V/24V Solar Charge Controller+Solar Cable Off-Grid System for 12V Batteries Solar System Motorhome Houses Balcony Camping
$187.06
Sale price
$187.06
Regular price
$0.00
SPECIFICATIONS
Brand Name: WUZECK
Certification: CE,weee
Flexible Solar Panel: Yes
Foldable Solar Panel: No
High-concerned chemical: None
Material: Monocrystalline Silicon
Max. Power: 200 Watts
Model Number: 200 W Solar Panel Kit
Module Efficien: 24%
Nominal Capacity: 200W
Number of Cells: 30PCs
Number of Panels: 2
Origin:
Size: 114x46x0.25 cm
Type: Solar Panel
is_customized: Yes
200W solar panel kit has two colors to choose from, please note that buyers should choose the color of the solar panel you need when placing an order.
[Photovoltaics equipment accessories]:

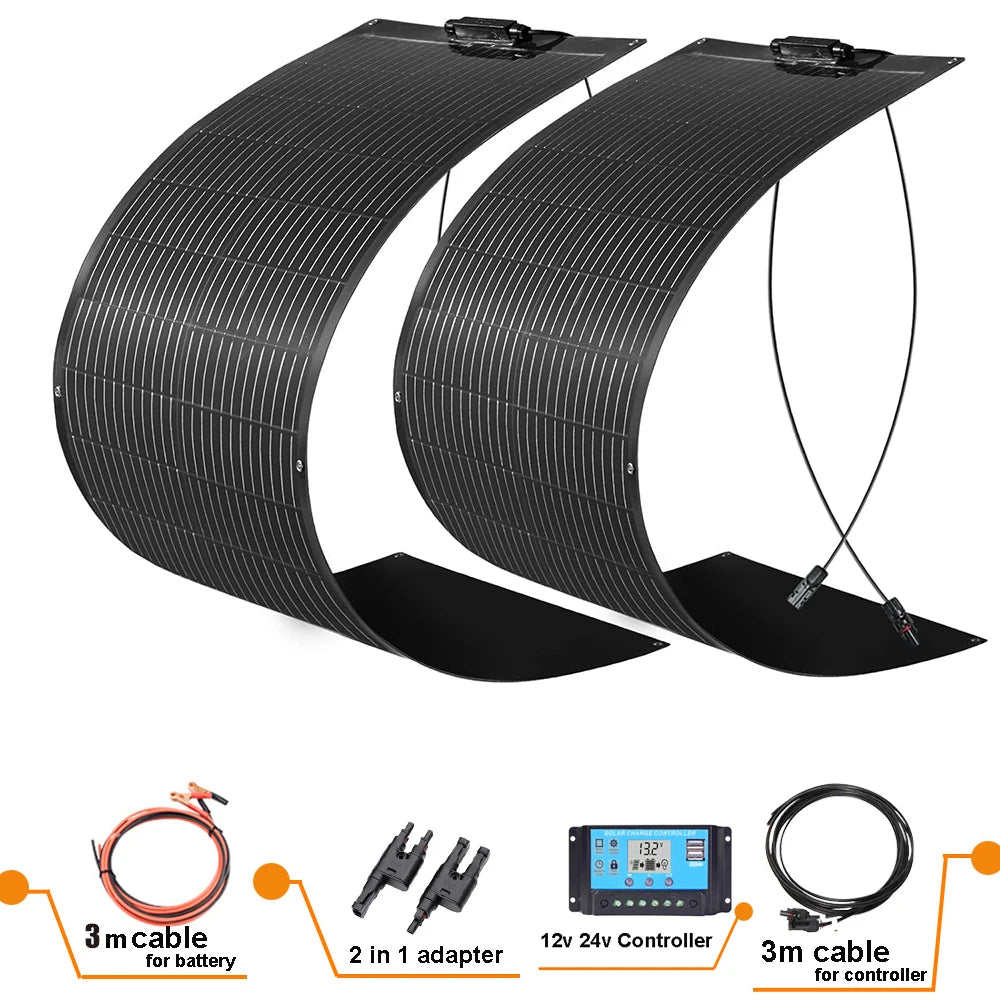

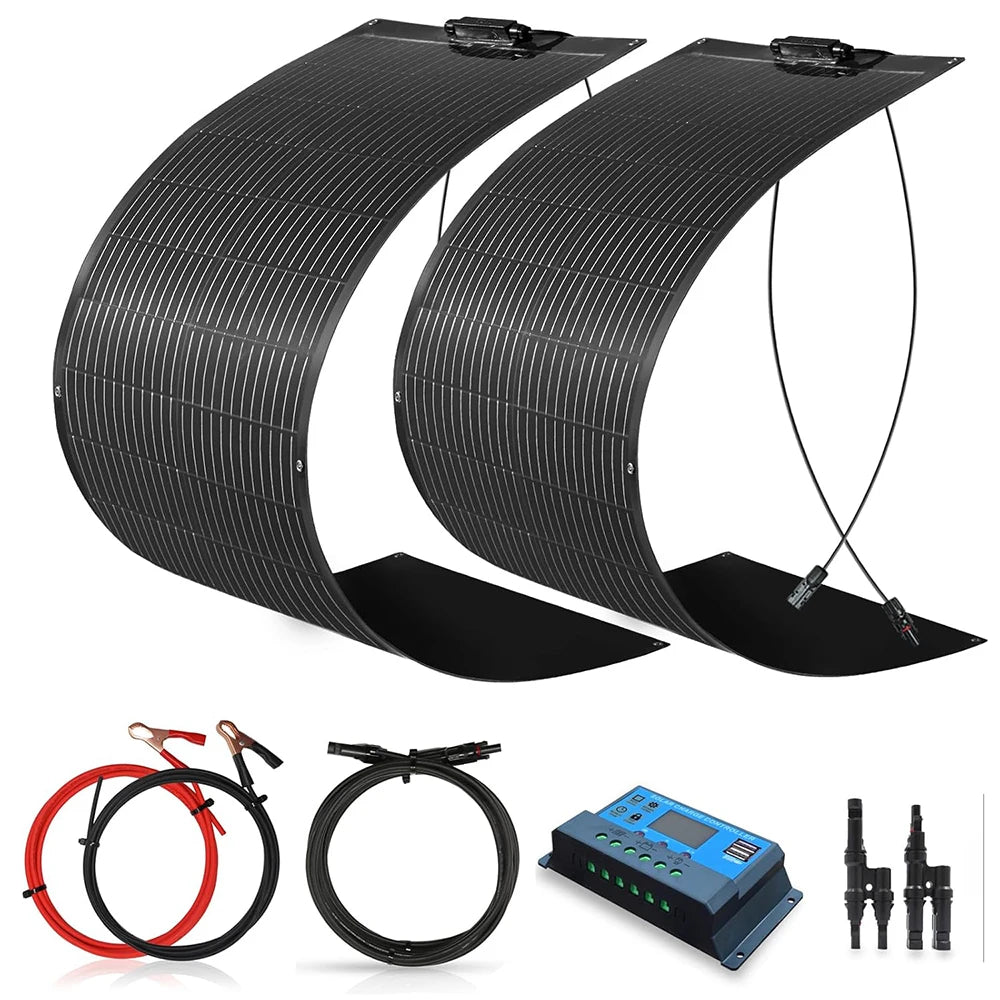

2 PCs solar module with 1x12V 20A solar charge controller; with 2x3 meters Solar cable extension; 3 meters crocodile terminal cable (solar charge controller battery connection cable), for charging lead-acid and lithium batteries. The cables are all waterproof and have better quality and length than their counterparts; with 2 x Solar Parallel Connectors
OR
2x1140X460X2.5mm solar panel 100W
1x12V/24V 20A solar charge controller
2x3 meters Solar cable extension
3 meters crocodile terminal cable (solar charge controller battery connection cable)
1 x Solar Parallel Connector
Efficiency of solar cells 23%
Max. Power (Pmax) 100W
Max. Power Voltage (Vmp) 16.5V
Max. Current (Imp) 6.06A
Open circuit voltage (Voc) 19.8V
Short-circuit voltage (Icc) 6.66A
Max. system voltage 1000V DC
Working temperature-40 °C ~ + 82 °C
Waterproof IP68

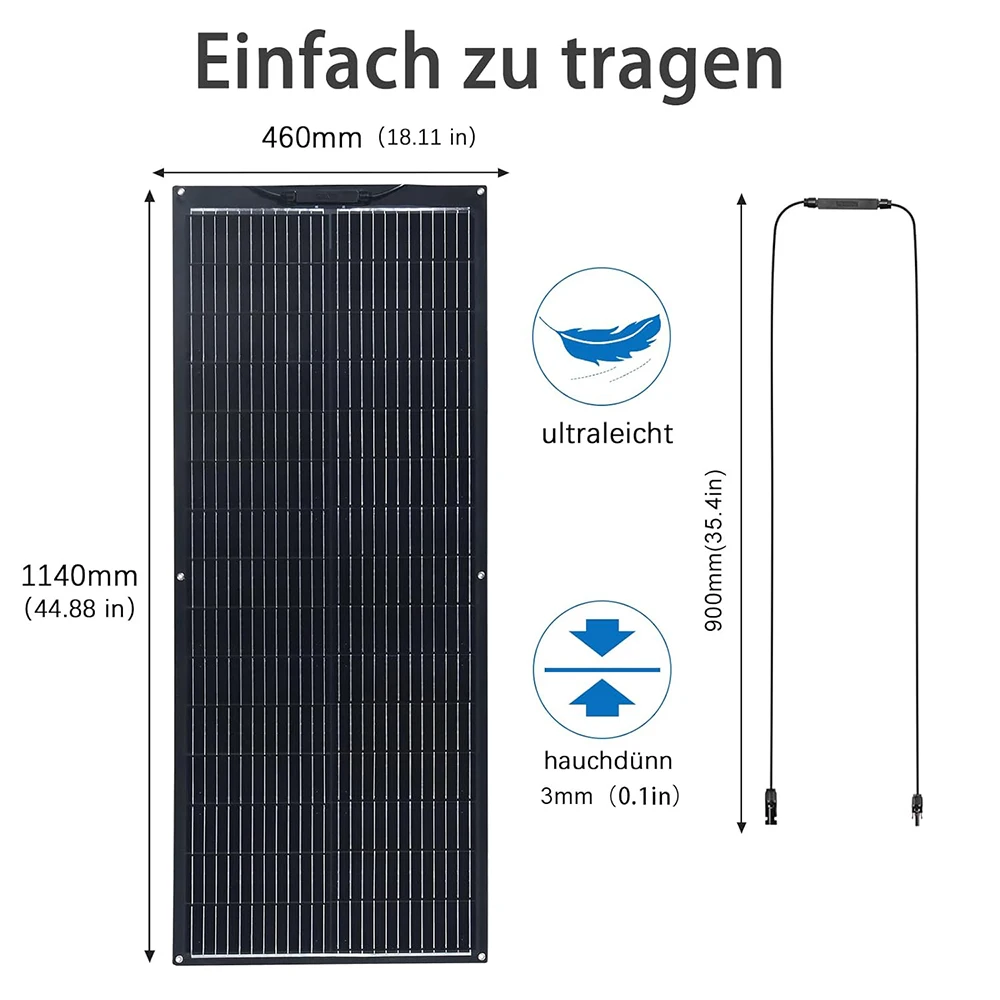

Dimension 1140X460X2.5mm
Weight 1.8kg
Standard test conditions: lradiance 1000 W/m ^ 2, temperature 25 °C, am = 1.5
[High conversion rate] The 200W flexible solar panel uses 12BB of the latest monocrystalline silicon with a conversion rate of up to 23%. In full sunlight, it takes about 7 hours to fully charge a 1000 Wh battery (depending on sun exposure)

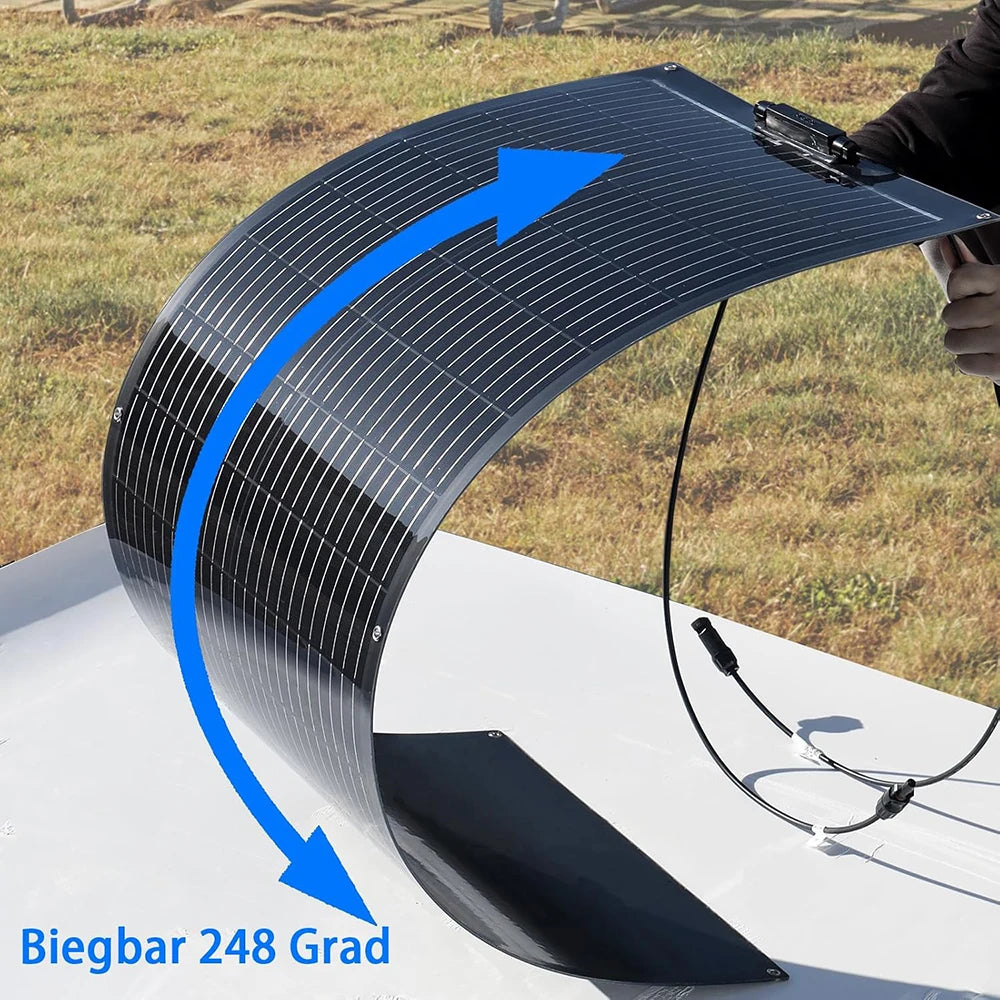

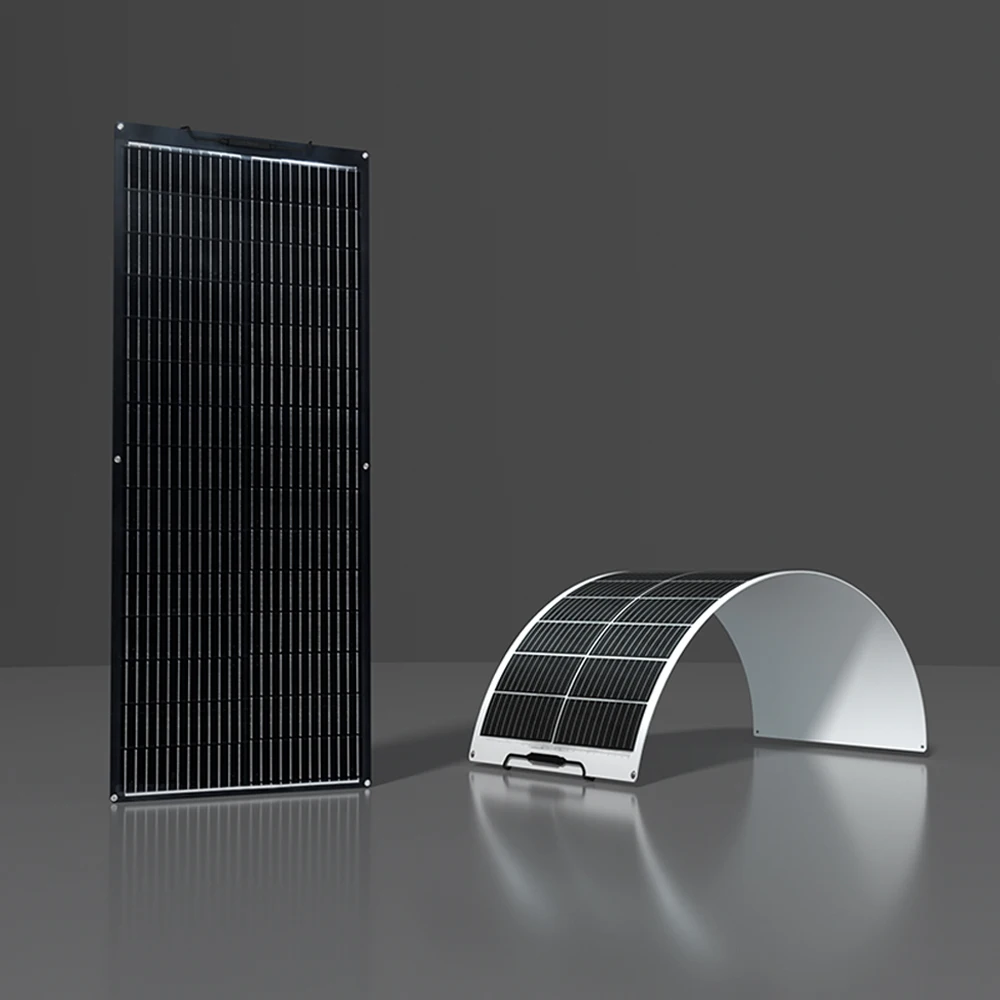

[Flexible and Ultralight] This flexible 100W solar panel can be bent 248 degrees, making it ideal for boats, caravan, pendant and other curved surfaces. With a thickness of only 3mm and a weight of 1.8 kg, it is easy to transport, carry and install.

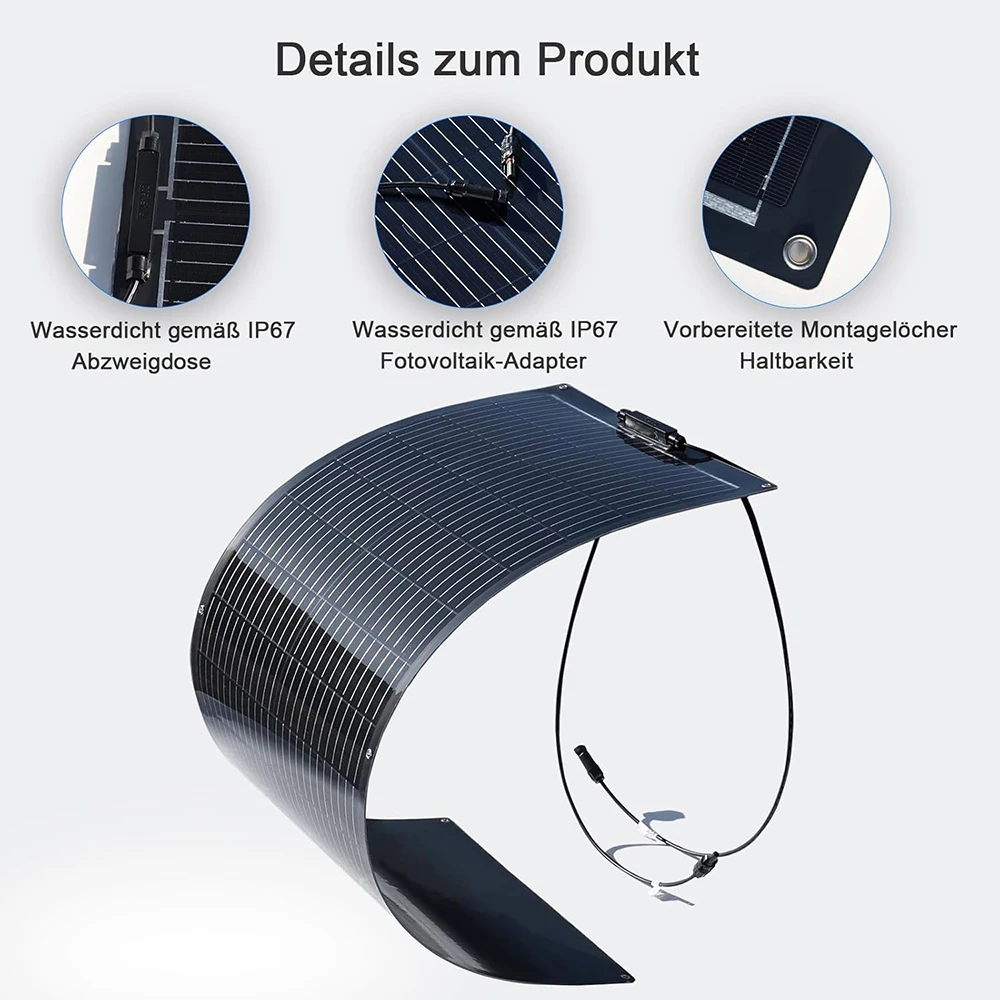

[Robust and durable] This flexible 100W IP68 Waterproof solar panel can withstand strong winds of up to 2400 Pa and snowfall of up to 5400 Pa. IP67 Waterproof Junction Box The built-in blocking diode prevents the battery from discharging at night. This avoids the flow back and damaging the circuit board in the cells
[Easy installation] The solar panels are pre-drilled with mounting holes for metal reinforcement. They can be fastened with silicone, double-sided tape, cable ties or Velcro, which makes the installation very easy and simple.

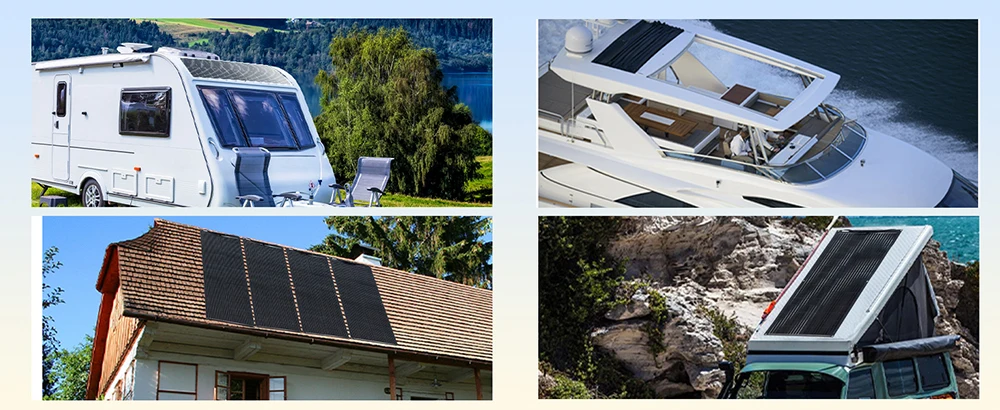

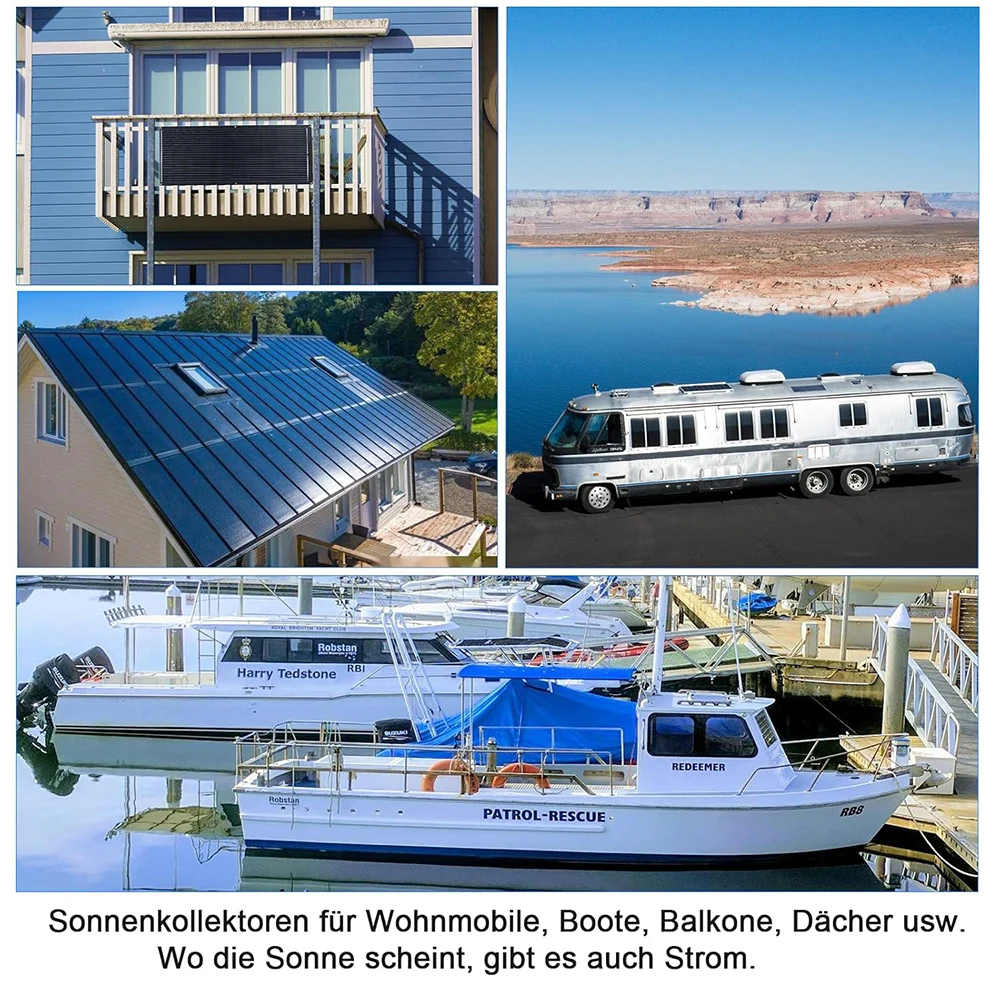

[Effective applications] Solar panels can be used in any net independent and net coupled solar energy system by connecting multiple modules in series or in parallel. Delivers electricity for boats, campers, trucks, pendant, cabins and houses.
12V/24V 20A solar charge controller
There are 2 USB ports, 5V/2A can be used for mobile phones, Power Bank e.g. Delivers stable voltage and current

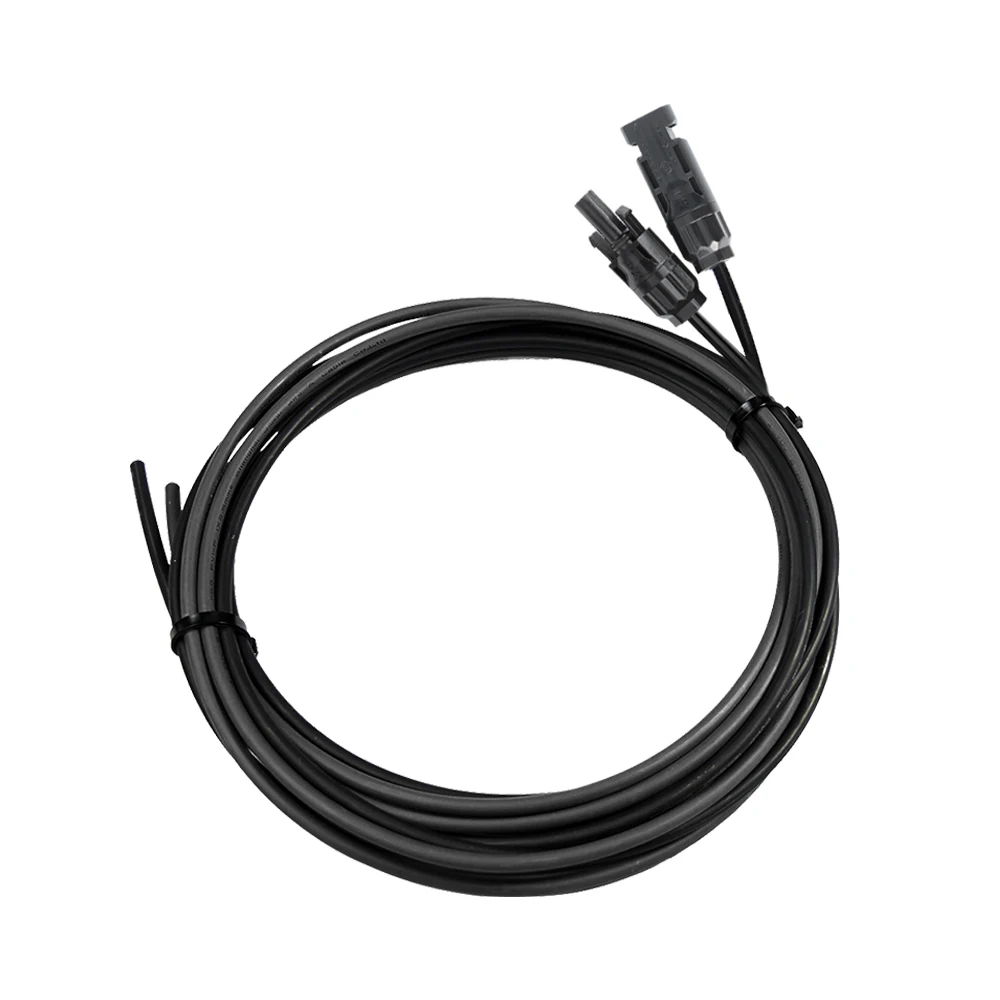

Solar cable extension
2x3 meters Waterproof extension cable, perfectly suitable for a variety of installations, e.g. Balcony caravan, etc

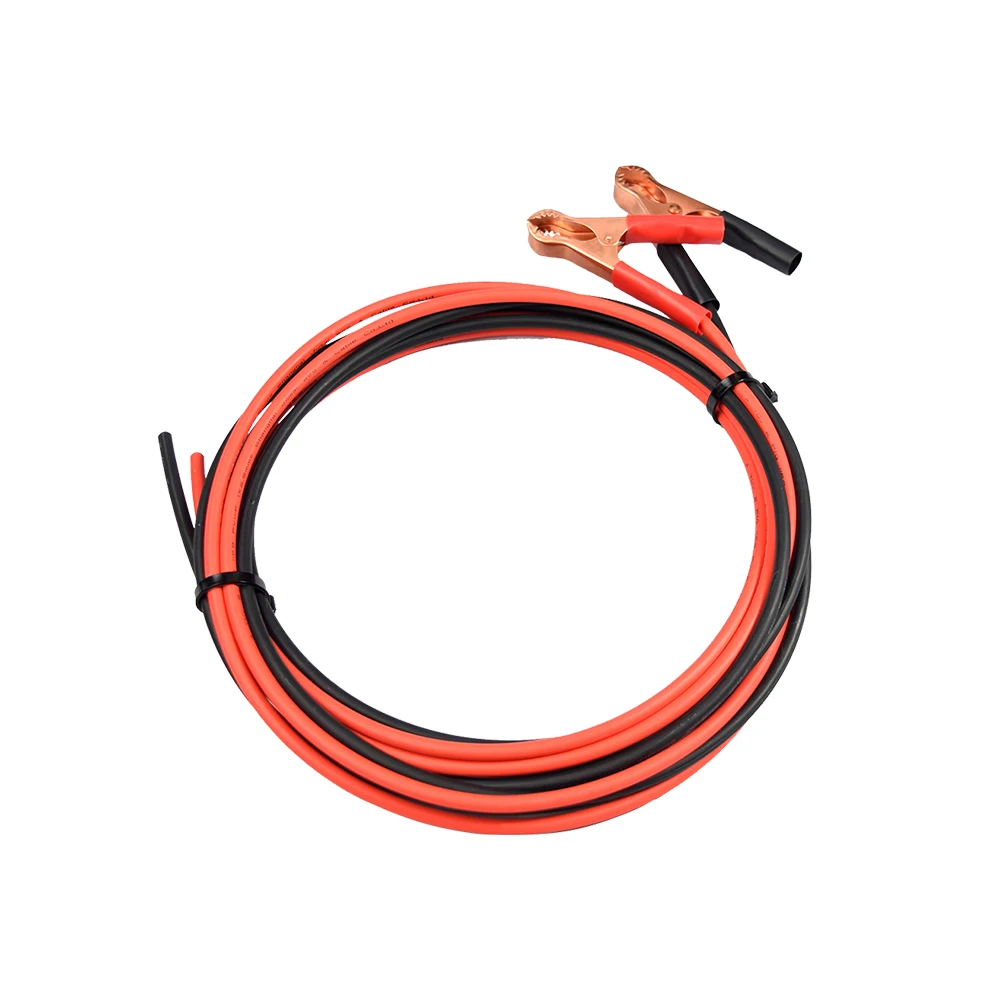

Crocodile Terminal Cable
2x3 meters Waterproof battery connection cable to connect the solar charge controller to the battery (lead acid/lithium/lithium iron)

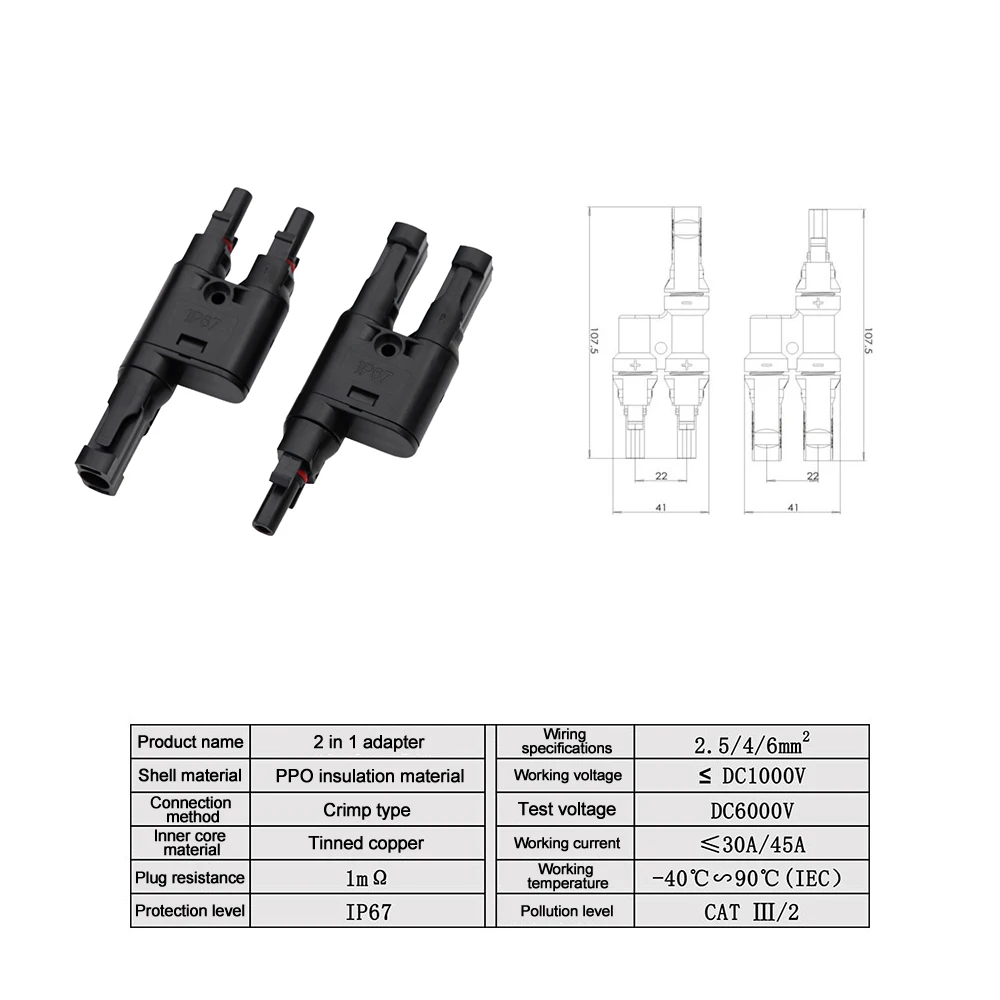

Parallel adapter

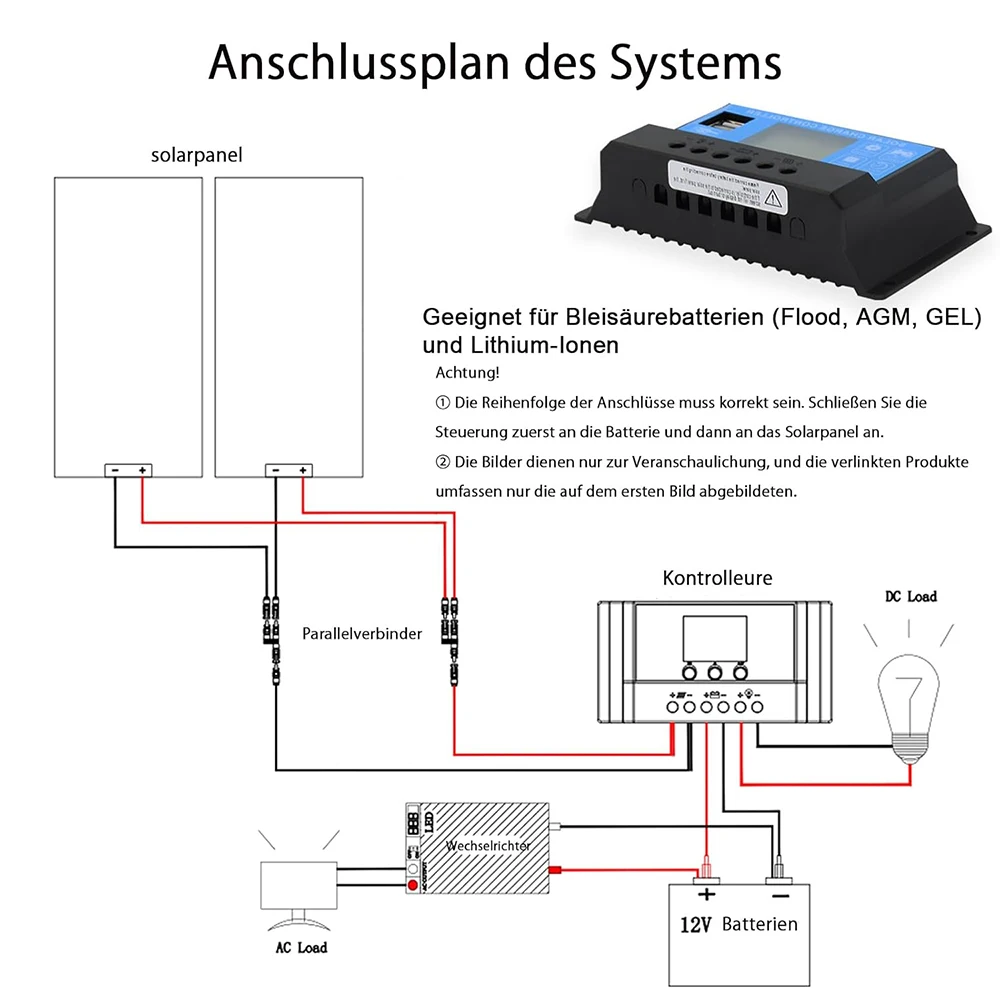

Parallel use of solar panel, you need the solar photovoltaics connectors. This accessories is not required for the series connection

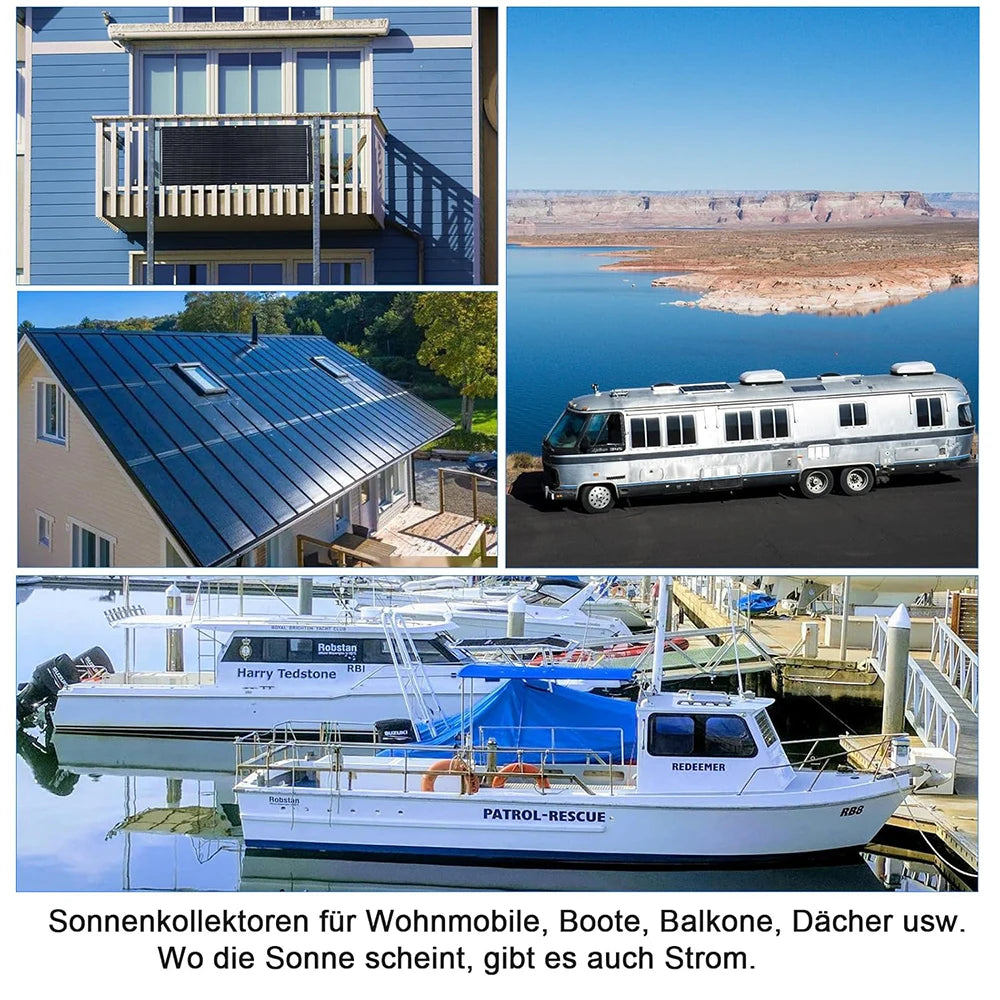

Solar panel Flexible Suitable for camping, mobile home, roofs, balconies, boats, etc
